vertical centrifuges / Biotechnology

BTH 80 D3 CLARIFIER

TECHNICAL DATA

Model

BTH 80 D3

Estimated capacity

1,230 gph (5000 lph)

Run-up time

5~8 minutes

Run-down time (without brake)

≤40 minutes

Noise

≤76 db

Vibration

≤ 1.8 mm/s

Input pressure

0~0.1 mPa

Output pressure

0~0.3 mPa

Operating water pressure

0.2 mPa≤ p ≤0.45 mPa

Motor power

15 kW

Motor speed

1460 rpm

Gross weight

~4,409.24 lb (2000 kg)

Dimensions (L×W×H)

70.86" x 69.68" x 72.83" (1800 x 1770 x 1850 mm)

(*) The total capacity of the machine will depend on solids contents in the feed fluid and separation needs of the final product.

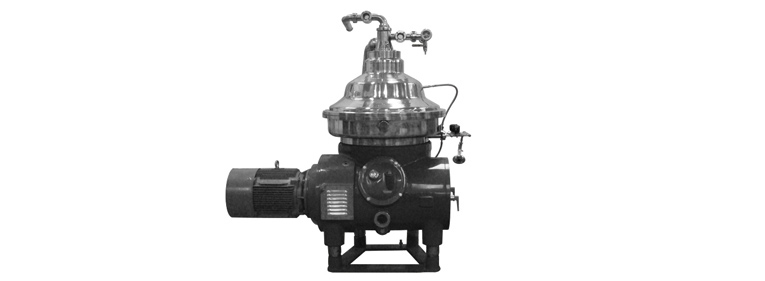

REFERENCE DESIGN
